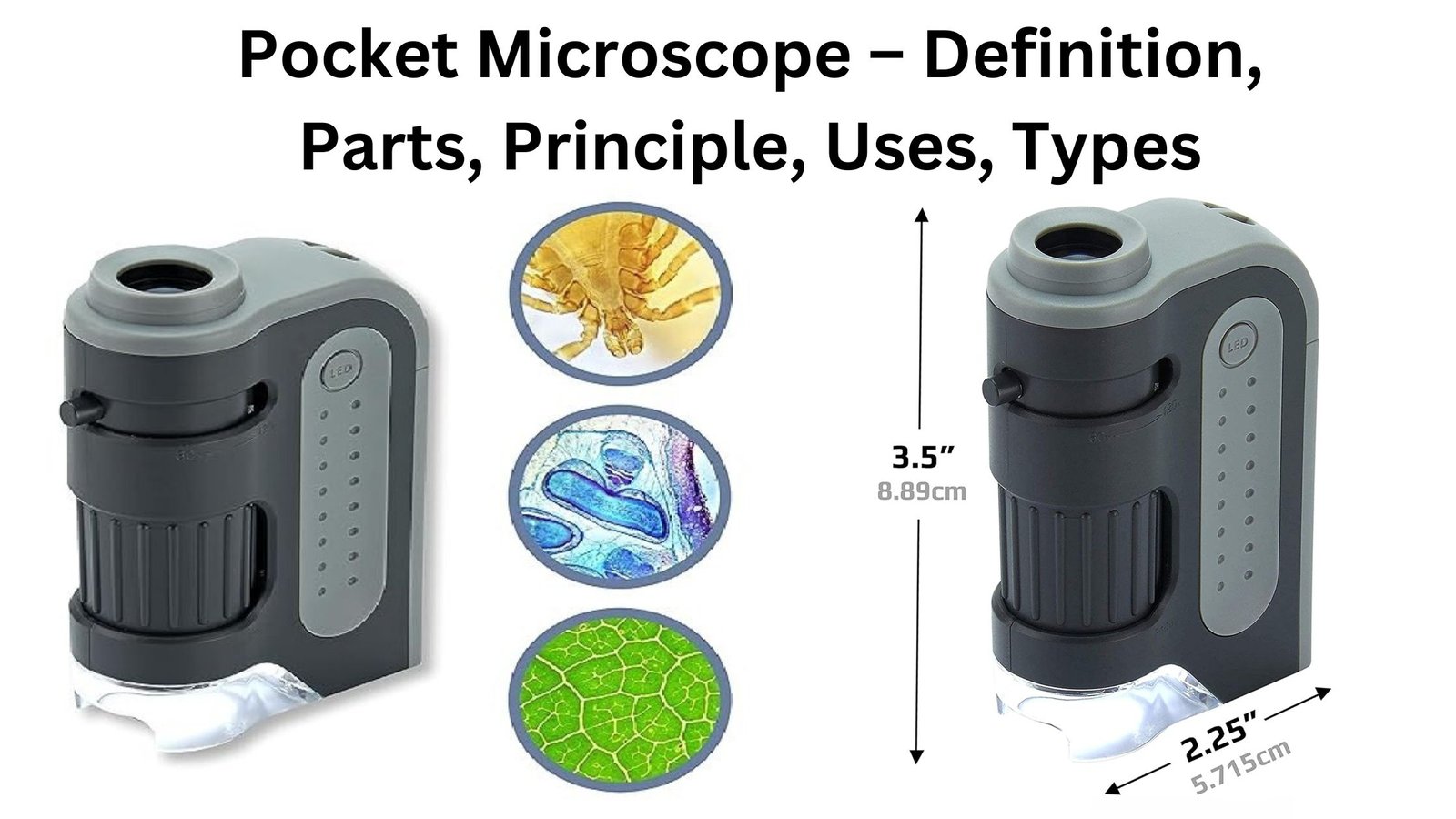

Pocket Microscope – Definition, Parts, Principle, Uses, Types

What is a Pocket Microscope?

A pocket microscope is a compact optical instrument that professionals and hobbyists alike can utilise. These microscopes– which are specifically engineered to be portable, feature a diminutive form factor that makes them truly pocket-sized, though certain models are marginally larger.

Like most microscopes, they incorporate a small platform for specimen observation, yet their compact nature means they cannot accommodate a mirror system to properly orient the image. Despite this limitation, these portable instruments serve both casual enthusiasts and trained specialists, depending on their specific requirements.

The microscope’s miniature design enables users to carry it about effortlessly, making it a practical tool for field research or quick examinations. whilst its compact dimensions might suggest limited capabilities, these portable microscopes– sometimes called pocket scopes by enthusiasts, can deliver surprisingly detailed observations.

These portable optical tools maintain functionality despite their reduced size, though naturally, they mightn’t match the capabilities of their full-sized laboratory counterparts. Nevertheless, they’ve become increasingly popular amongst various users, from students to professional researchers, owing to their convenience and practicality in diverse settings.

The design prioritises portability without completely sacrificing optical performance, making these instruments particularly useful for quick observations outside traditional laboratory environments. Their versatility allows both amateurs and professionals to conduct basic microscopic examinations wherever they might be needed.

Principle of Pocket Microscope

Most pocket microscopes feature a straightforward design principle– they consist of an eyepiece positioned at one end whilst a light source occupies the opposite end, accompanied by a compact stage for specimen placement. However, certain models lack this specimen stage altogether.

These compact optical instruments demonstrate fascinating variability in their construction. When a stage is absent, users must position the microscope directly above the specimen at an appropriate viewing angle. Some pocket scopes incorporate mirrors and specialized lenses to magnify specimens, though this often results in an inverted image.

The principle behind these portable microscopes is rather intriguing, as their diminutive size presents unique design challenges. Whilst larger microscopes typically employ mirror systems for image orientation, pocket microscopes often lack this capability due to their compact nature. This limitation stems from their reduced dimensions, which simply cannot accommodate the necessary mirror arrangements to properly orient the viewed image.

Like most optical instruments, these portable microscopes rely on fundamental principles of light manipulation and magnification. The basic components work in harmony to deliver a magnified view of specimens, though the exact configuration may vary betwixt different models. Some sophisticated versions might incorporate additional features, whilst simpler variants maintain a more basic arrangement of components.

The operational principle remains relatively straightforward, despite variations in design. Light passes through or reflects off the specimen, travelling through the optical system to present a magnified image to the observer. This fundamental approach to microscopy persists, even in these miniaturised versions, though certain compromises in image orientation might be necessary due to size constraints.

Parts of a Pocket Microscope

• Light source – Its an LED light source placed at the end of scope that helps to illuminate objects whilst viewing.
• Eyepiece– The eyepiece helps you to view objects and specimens through the microscope.
• Stage – The stage, which is found on certain pocket microscopes, provides a platform for holding specimens.
• Mirror–Like most microscopes, they have a reflecting mirror that directs light onto the lens for better viewing of specimens and samples.
• Batteries – These microscopes need batteries to function properly as they provide energy to power the LED light source and other components.
• Battery holder– It’s a compartment in pocket microscope that keeps the batteries secure and in proper position.
• Digital camera – Some pocket microscopes come equipped with digital camera that allows you to capture photographs of magnified specimens whilst examining them through microscope.

Types of Pocket Microscope

• 30x Pocket Microscope– These instruments demonstrate exceptional image clarity, being the most widely available type that’s quite affordable at approximately £8 or less. They’re brilliant learning tools that are compact and lightweight, utilizing battery-powered illumination. Though primarily designed for youngsters (Kids Microscope), it’s important to note that these aren’t mere playthings. These scopes serve brilliantly for examining jewellery as well.
• LED pocket scope– Features an integrated LED light source that makes it more powerful and efficient compared to standard models. These microscopes are cost-effective and user-friendly, boasting 45x magnification with a durable plastic construction that’s quite resistant to drops and falls. They produce crisp images whilst featuring long-lasting LED illumination. The SE Mini illuminated scope stands out as the most popular variant. Its compact size makes it genuinely pocket-sized, and it’s remarkably affordable at under £8.
• Pocket Microscope 100x– Possesses superior magnifying capabilities of 100x, making it considerably more advanced than its counterparts. This impressive magnification power makes it suitable for fieldwork, though it remains accessible to children and enthusiasts alike. The Carson MicroMax 60x-100x Lighted scope, which includes built-in LED illumination, exemplifies this category. These instruments are lightweight and straightforward to operate, featuring powerful lighting combined with quality optics that produce brilliantly clear images. The eyepiece incorporates rubber construction for comfortable viewing sessions. They remain reasonably priced at £12 or less, making them suitable for children (Kids Microscope) as well.
• Pen-Type Microscopes– Crafted to resemble a writing instrument, these portable optical tools commonly feature a practical clip for attaching to notebooks or pockets. They deliver magnification capabilities ranging from 15x to 50x magnification power. The PEAK scope, a notable example, offers three distinct magnification settings: 15x, 25x, and 50x, whilst some variants incorporate LED illumination for enhanced specimen visibility.
• Handheld pocket scope– These portable instruments are specifically engineered for manual operation, typically featuring built-in LED lighting systems to illuminate specimens effectively. They’re brilliant for swift inspections and have gained considerable popularity in educational environments. The Carson MicroBrite Plus exemplifies this category, delivering impressive magnification ranging from 60x to 120x, whilst incorporating an aspheric lens arrangement for superior image clarity.
• Digital Pocket scope– These sophisticated instruments incorporate digital imaging capabilities, enabling users to capture and store specimen images or video recordings. They’re particularly useful for documentation and analysis tasks, offering the convenience of digital record-keeping. Some models include smartphone adapters, allowing users to view and share images directly from their mobile devices.

How to use a Pocket Microscope

1. Proper illumination– Like most optical instruments, ensuring adequate lighting proves crucial for these portable scopes. The built-in light source, typically LED-powered or utilizing a small mirror to reflect ambient light, must be properly adjusted. Poor lighting conditions might result in unclear images, hence proper adjustment becomes rather essential.
2. Steady positioning- Maintaining stability whilst using these compact instruments can be quite tricky due to their diminutive size. However, resting the scope on a solid surface or utilizing a magnification stand (when available) significantly improves viewing quality. certain models require positioning the lens quite near to specimens for optimal viewing.
3. Focus adjustment– These portable microscopes typically feature manual focusing mechanisms. One must carefully adjust the focusing knob or lens position to achieve crystal-clear images. Patience proves essential, as the working distance tends to be rather short, and focusing can be somewhat finicky.
4. Field of view considerations– The viewing area tends to be quite limited with these compact instruments. Moving specimens about might prove necessary to examine specific areas of interest. Maintain steady specimen positioning whilst adjusting the scope’s location. Most variants offer magnification ranging from 60x to 100x, though some provide enhanced zoom capabilities, necessitating careful adjustment for optimal clarity.
5. Versatile applications– One particularly fascinating aspect of these portable scopes lies in their broad application potential. Whether examining plant cells, inspecting electronic components, or studying crystals, their versatility proves rather impressive. Take your time exploring various specimens, though mind the shallow depth of field– requiring specimen adjustment for comprehensive focus.
6. Digital documentation– Some sophisticated models incorporate camera features, enabling image or video capture. This capability proves particularly useful for recording observations or sharing findings. utilize the instrument’s settings to capture and review images effectively.
7. Maintenance requirements– Regular lens cleaning proves essential, as these portable instruments tend to accumulate dust and fingerprints that might distort viewing clarity. A microfibre cloth typically suffices for cleaning purposes. Remember to clean the illumination area as well.
8. Power management– Mind the battery life of these portable instruments, as they typically utilize smaller power sources. keeping spare batteries or charging equipment handy can prevent interruptions during specimen examination.

Pocket Microscope Uses

• Size friendly operation– These portable instruments are brilliantly suited for children’s use, owing to their compact dimensions and straightforward operational design which makes them particularly accessible for young learners.
• Educational purposes– Their diminutive size and simple operation make them brilliant educational tools, especially beneficial for youngsters exploring the microscopic world for the first time whilst learning basic scientific principles.
• Jewellery inspection– These compact scopes prove invaluable for examining intricate details of jewellery pieces, enabling craftsmen and collectors to scrutinise fine details and authenticate precious items.
• Circuit board examination– The portable nature of these microscopes makes them rather useful for inspecting electronic components and circuit boards, helping technicians identify faults or verify soldering quality.
• photographic inspection– These instruments assist photographers in examining film negatives, prints, and various imaging materials to ensure quality and detect potential issues.
• Watchmaking applications– Horologists utilize these portable scopes for detailed examination of timepiece components, making them essential tools in watch repair and maintenance.
• Dental examination– These compact microscopes serve brilliantly in dental practices, enabling practitioners to examine teeth and oral tissues with enhanced magnification.
• Entomological studies– Scientists and enthusiasts employ these portable instruments to study insects in detail, making them particularly useful for field research and specimen examination.
• Numismatic examination– Coin collectors and experts utilize these portable scopes to scrutinise the intricate details of coins, helping authenticate and grade various specimens whilst identifying subtle characteristics.

Advantages of Pocket Microscope

• Portability– These optical instruments are brilliantly portable owing to their compact dimensions, making them rather practical for field applications and swift examinations wherever needed.
• Professional and Amateur usage– Like most microscopes, these portable scopes prove quite versatile, serving both professional researchers and amateur enthusiasts quite effectively, depending upon their specific requirements and applications.
• Cost-effective nature– These compact optical tools are remarkably inexpensive, making them rather accessible to diverse users whilst delivering good value for money.

Disadvantages of Pocket Microscope

• Limited magnification– These portable optical tools possess relatively modest magnifying capabilities, typically ranging from 30x to 100x magnification power, which might prove insufficient for certain detailed examinations.
• Maximum magnification constraint– Like most compact microscopes, these instruments cannot achieve magnification powers exceeding 100x, which rather limits their application in scenarios requiring more detailed specimen examination.
